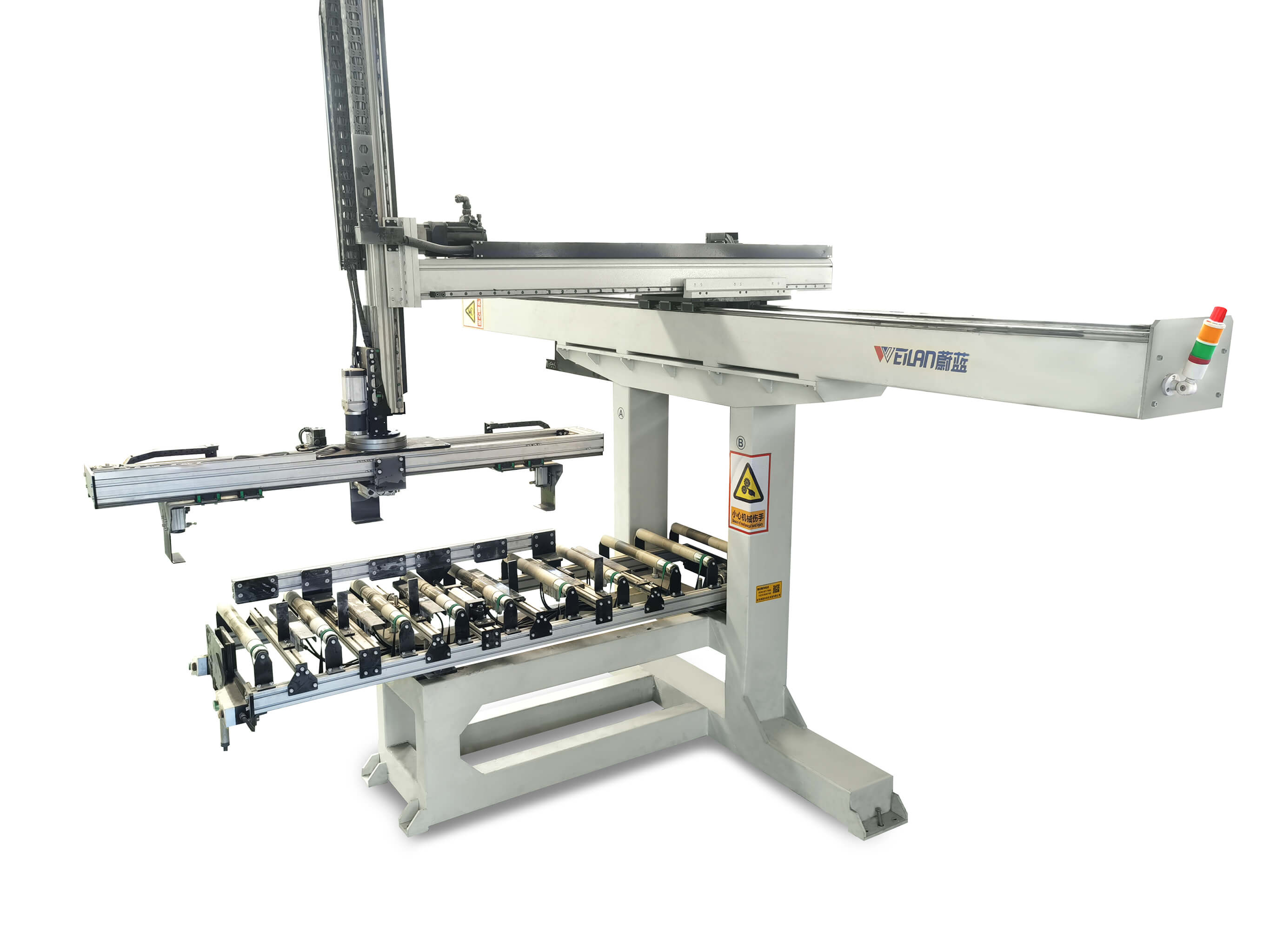

SPC single pile of plank palletizer

Model:DL-1500

Application:

SPC plank

         Clamp gripper,one pile of plank stacking,Two workstation

         Cutting line,grooving line,coating line

Size of plank:900-1500mm

Feature:

Four axis,various pallet stacking pattern to choose

     Servo motor control ,high precision

     Easy to operate, setting formulas in the PLC system for only once

     Open structure,double workstation to easy the forklift’s operation

Parameter:

Equipment size:4700*2050*4150mm

Total power:8.4KW

Air pressure:0.5-0.8MP

         Voltage:380V

         Efficiency:5-6 times/minute
