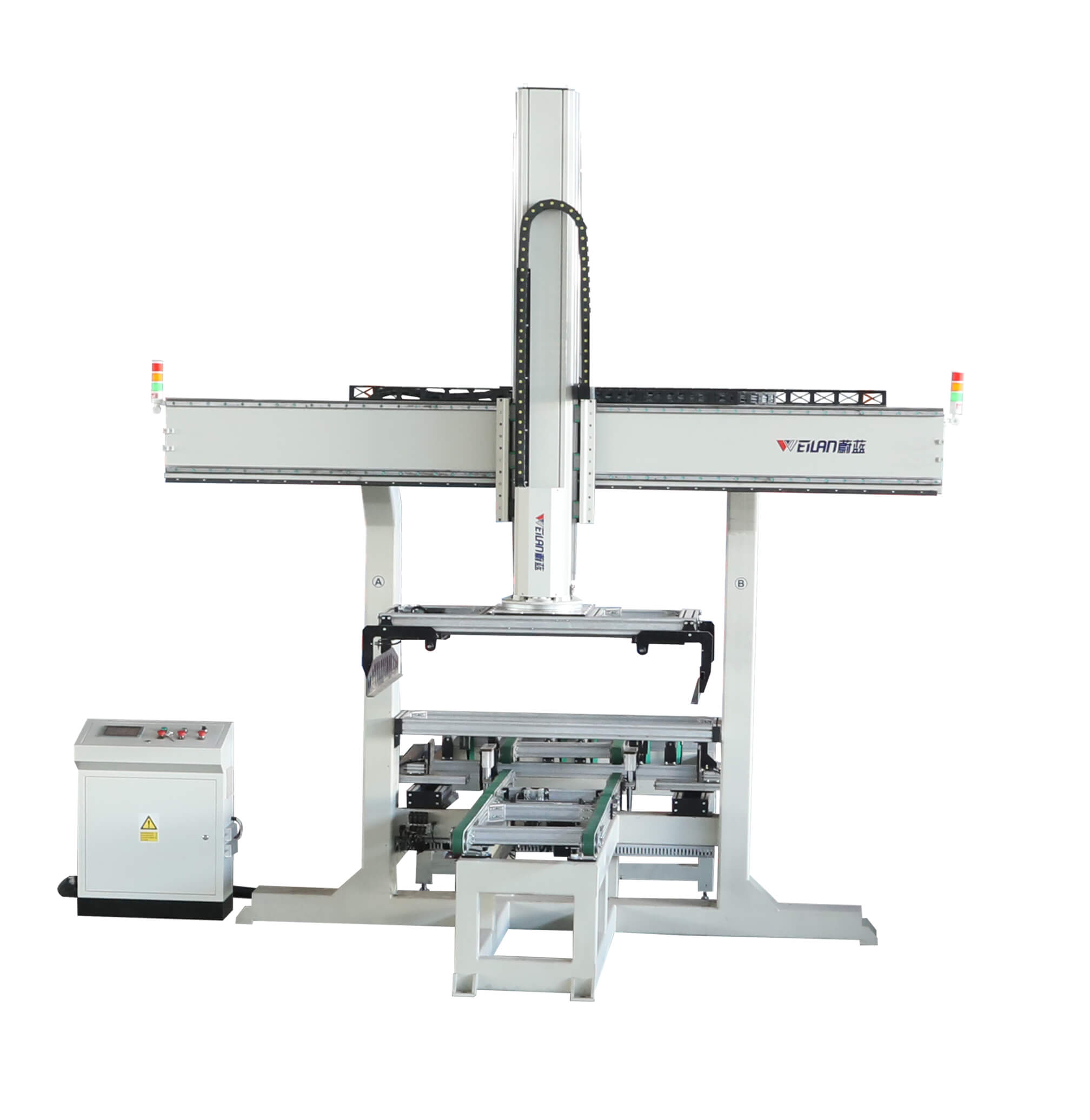

Wood plank palletizer heavy-duty gripper

Model:MD-1200

Application:

Wooden plank

         clamp gripper,multiple layers of plank stacking,two workstation

         Grooving line,coating line,cutting line

Size of plank:length:810-1240mm

Feature:

High efficiency,picking multiple layers of planks up gripper

Servo motor to ensure precision

     Pre-setting formulas on the PLC system,easy to operate

     Open structure,double workstation to easy the forklift’s operation

Space saving

Parameter:

Overall size:4100*2700*4300mm

        Total power:8KW

Air pressure:0.5-0.8MP

        Voltage:380V

        Efficiency:2 full layers/minute
